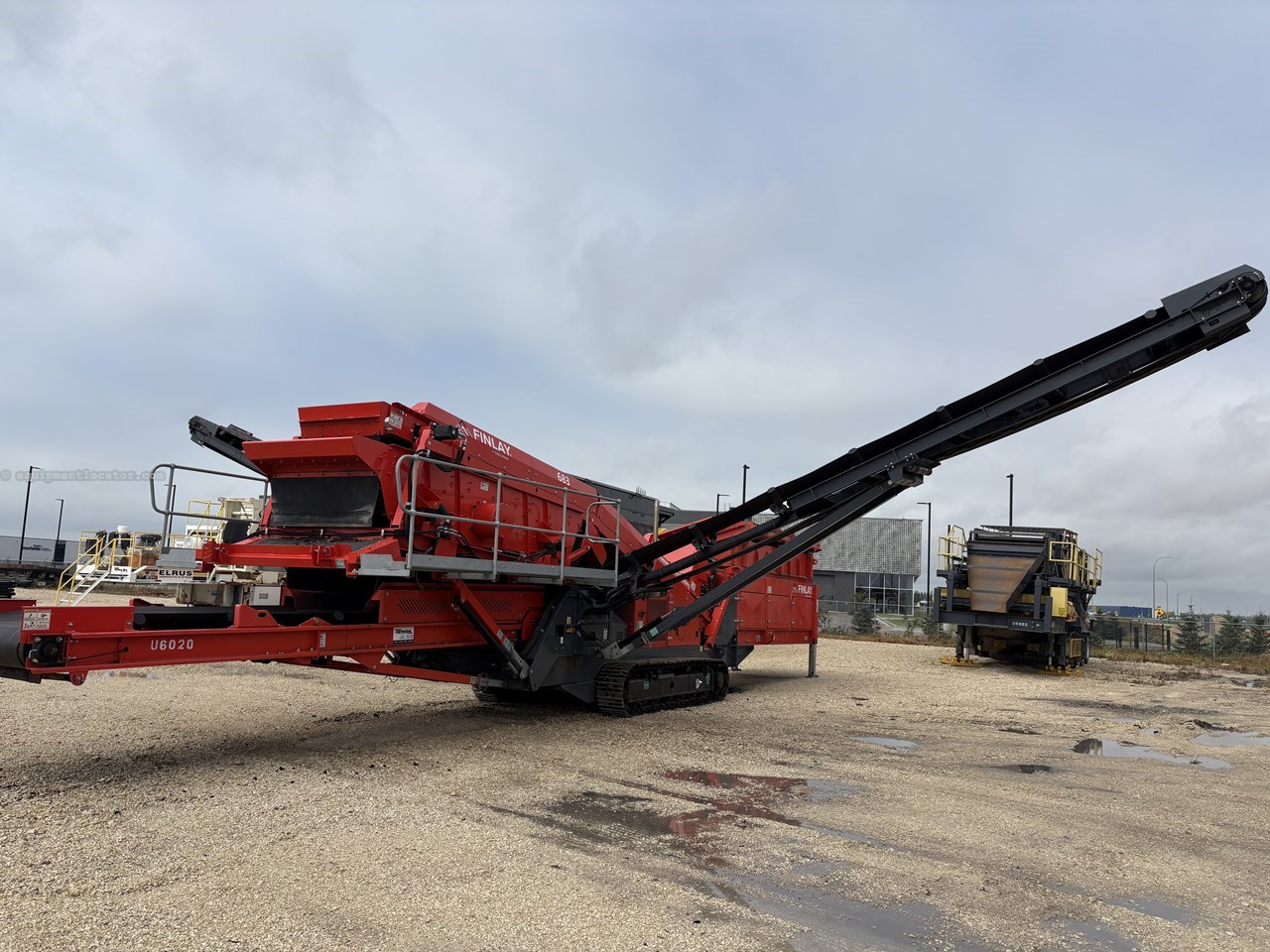

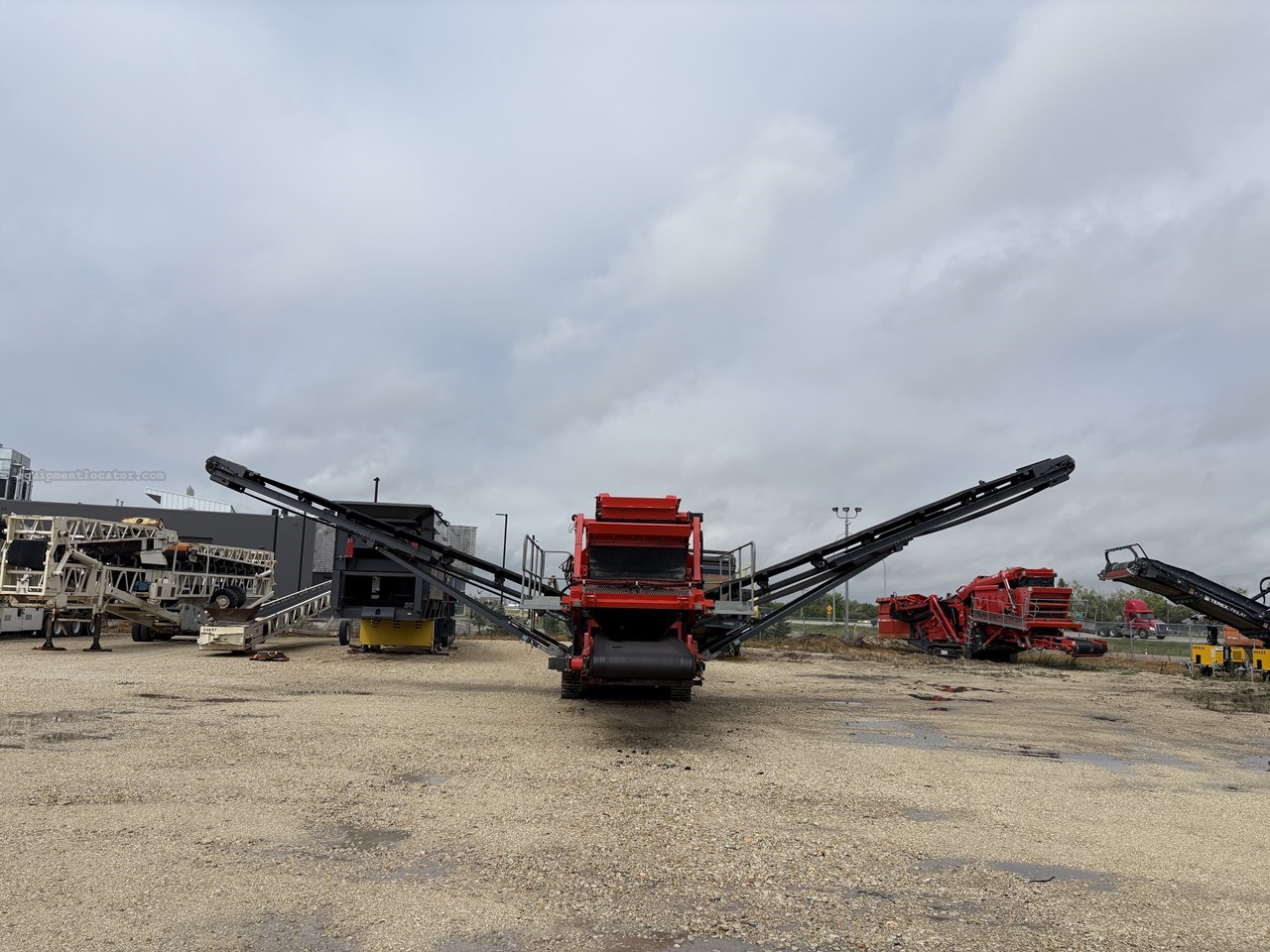

FINLAY 683 SUPERTRAK SCREEN PLANT EQUIPPED AS PER BELOW:
ENGINE:
- TIER4F/STAGE IV - CATERPILLAR C4.4 - 4 CYLINDER DIESEL ENGINE DEVELOPING 82 KW
(110 HP) @ 2200 RPM
FEEDER:
- 3.66M X 1.52M (12- X 5-) TOP DECK SCREEN AND 3.00M X 1.52M (10- X 5-) BOTTOM
DECK
- NO MESH OR SPEEDHARPS INCLUDED FOR ANY DECK (BUT ALL MESH FITTING PARTS
INCLUDED AS STANDARD)
- HYDRAULIC TENSING (BOTTOM DECK SCREEN MESH)
MAIN CONVEYOR:
- 1000MM (39") WIDE MAIN BELT C/W SKIRTING
SIDE CONVEYORS:
- 650MM (26") WIDE CHEVRON BELT ON BOTH SIDE CONVEYORS
FINES CONVEYOR:
- 1200MM (48") WIDE FINES BELT
ELECTRICAL:
- EMERGENCY STOPS
- CONTROL OPERATION OF TRACKS VIA HAND-HELT SET
- T-LINK TELEMETY SYSTEM
GENERAL:
- SAFETY GUARDS IN COMPLIANCE OF MACHINERY DIRECTIVE - UP TO THE END USER TO
HAVE GUARDING INSPECTED
- LOW LEVEL GREASING
ADDED ATTACHMENT:
- SINGLE SHAFT SHEDDER WITH FIX HARDOX BLADES
FINLAY 683 SUPERTRAK SCREEN PLANT EQUIPPED AS PER BELOW:
ENGINE:
- TIER4F/STAGE IV - CATERPILLAR C4.4 - 4 CYLINDER DIESEL ENGINE DEVELOPING 82 KW
(110 HP) @ 2200 RPM
FEEDER:
- 3.66M X 1.52M (12- X 5-) TOP DECK SCREEN AND 3.00M X 1.52M (10- X 5-) BOTTOM
DECK
- NO MESH OR SPEEDHARPS INCLUDED FOR ANY DECK (BUT ALL MESH FITTING PARTS
INCLUDED AS STANDARD)
- HYDRAULIC TENSING (BOTTOM DECK SCREEN MESH)
MAIN CONVEYOR:
- 1000MM (39") WIDE MAIN BELT C/W SKIRTING
SIDE CONVEYORS:
- 650MM (26") WIDE CHEVRON BELT ON BOTH SIDE CONVEYORS
FINES CONVEYOR:
- 1200MM (48") WIDE FINES BELT
ELECTRICAL:
- EMERGENCY STOPS
- CONTROL OPERATION OF TRACKS VIA HAND-HELT SET
- T-LINK TELEMETY SYSTEM
GENERAL:
- SAFETY GUARDS IN COMPLIANCE OF MACHINERY DIRECTIVE - UP TO THE END USER TO
HAVE GUARDING INSPECTED
- LOW LEVEL GREASING
ADDED ATTACHMENT:
- SINGLE SHAFT SHEDDER WITH FIX HARDOX BLADES
Availability and price subject to change and/or prior sale. Specifications and equipment configuration is subject to change. Please consult a sales professional to ensure that website information is correct and up-to-date.
This is a courtesy price conversion. It may not be exact as the currency conversion rates change. When making a purchase, the original price in the native currency is implied.
